CR-29高壓離心風機
產品分類：高壓離心風機
點擊次數：376 次
上架時間：2021-12-16 11:01
全國服務熱線：020-84913508 / 020-84918260
我要詢價詳細介紹

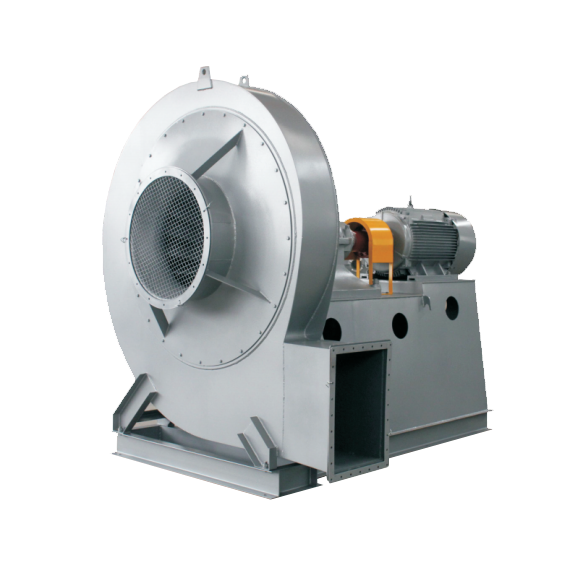

CR-29高壓離心風機
此類型風機具有效率高、能耗低，是目前國內在高壓風機中較理想的風機。
This type of fan has high efficiency and low energy consumption. It is an ideal fan among high-pressure fans in China.
風量范圍： 2500~ 82191m3/h
Air volume range: 2500~ 82191m3/h
風壓范圍：3659~13062Pa
Wind pressure range: 3659~13062Pa
驅動方式：直聯(A/D)皮帶(C)
Driving mode: direct connection (A / D), belt (C)
型號范圍：5.5#~17.5#
Model range: 5.5#~17.5#
方向角度：可制成順時針或道時針，均可制成0° 45° 90° 135° 180° 270°六種角度。
Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.
整體結構： C式風機主要由葉輪、機殼、進風口、傳動部分、支架等組成 ；A式風機由風機和電動機直接連接。
Overall structure: type C fan is mainly composed of impeller, casing, air inlet, transmission part, support, etc; Type a fan is directly connected by fan and motor.
葉輪：由12個后向、錐形、單圓弧等厚葉片，與錐形前盤和平板形后盤組成，葉輪制造完成后經靜、動平衡校正，
空氣性能良好，效率高、運轉平穩、安全可靠。
Impeller: it is composed of 12 backward, conical and single circular arc blades with equal thickness, conical front disc and flat plate rear disc. After the impeller is manufactured, it is corrected by static and dynamic balance. It has good air performance, high efficiency, stable operation, safety and reliability.
進風口：它是裝于風機的側面整體焊接件，與軸向平行的截面為前錐形后接曲線獎，能使氣體損失較小地順利進入葉輪。
Air inlet: it is an integral weldment installed on the side of the fan. The section parallel to the axial direction is a front cone followed by a curve, which can make the gas enter the impeller smoothly with less loss.
機殼：采用優質鋼板焊接成蝸殼形的整體。
Casing: high quality steel plate is welded into a volute shaped whole.
用途：適用于輸送、吸引空氣,以及輸送無腐蝕性、不自然、不含有粘性物質的氣體。尤其適用于棉線加工輸送,也可以用于沖天爐吹煉。
Application: suitable for transporting and attracting air, and transporting non corrosive, unnatural and non viscous gases. It is especially suitable for cotton processing and transportation, and can also be used for cupola blowing.
適用環境：輸送介質的溫度一般不超過80°C。介質中所含塵土及硬質顆粒不大于150mg/m3。
Applicable environment: the temperature of conveying medium generally does not exceed 80 ° C. The dust and hard particles contained in the medium shall not be greater than 150mg / m3.
※可特殊定做防爆式、防腐式、耐高溫結構
※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
